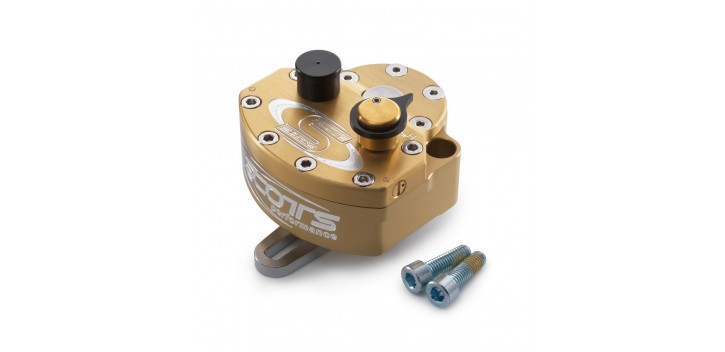

58512050100 AMORTIGUADOR DIRECTION
close

Adjustment

The steering damper has three external adjustment possibilities, i.e. the adjustment of the buffer valve (1), the high-speed valve (2) and the sweep valve (3), which regulate the buffer range.

Damping valve

The Öhlins or Scotts steering damper is supplied with the dampening valve ( 1), which is adjusted in a basic position which provides the maximum basic damping. For Enduro and Motocross it is favorable to adjust the buffer valve in position 7-8 from the position completely turned out in the sense of the clock needles, according to the terrain and the pilot. Turning in the sense of the clock needles increases damping and turning against the sense of the clock needles reduces damping.

WARNING: To avoid liquid loss, never open more than two full spins. If the pressure of damping is deactivated, that is, approx. 20 clicks in the opposite sense of the clock needles, there is still a buffer effect in case of rapid movements as the high-speed valve effect.

High-speed valve

The high-speed valve ( 2) fits between 1 1/4 and 2 spins from the bottom position, suitable for Enduro, Motocross and Rally. For all trips the high-speed valve must be screwed at least 1 spin from below. Turning in the sense of the clock needles increases damping and turning against the sense of the clock needles reduces damping.

Removing control sweep

Wire damping controls (3) are found on each side of the damping body. Damping is reached in position 2 (12 hours) in case of a supply of Öhlins or Scotts. This fit is suitable for Enduro, Motocross and Rally. WARNING: both sweep damping controls must always be placed in the same position. Always use the position according to the clock.

Maintenance and inspection The steering damper is a precision instrument with extremely thin tolerances. That is why it is important to maintain it properly. Maintenance and service should be performed by an official Öhlins or Scotts dealership. Clean it with a rag after washing the motorcycle and spray it with a universal oil. WARNING: Never expose it to a high-pressure wash, as water could penetrate the damper.

Liquid and service

Make sure that a liquid loss does not occur and there is no visible damage to the housing and the mounted parts. Change the liquid periodically. With new dampers after 10 hours of journey and after 20 hours of tour respectively. If the damper needs a service, Öhlins or Scotts dealers have the right tools and know-how for the solution of all technical problems.

58512050100

Data sheet

Color
dorado
APPROVALS
CCCUO_EU
FACTORY RACING
USED BY FACTORY RACING
Nombre modelo
125 EXC 2004
125 EXC 2005
125 EXC 2006
125 EXC 2007
125 EXC 2008
125 EXC 2009
125 EXC 2010
125 EXC 2011
125 EXC 2012
125 EXC Champion Edition 2010
125 EXC Factory Edition 2011
125 EXC Six-Days 2004
125 EXC Six Days 2006
125 EXC Six Days 2007
125 EXC Six Days 2008
125 EXC Six Days 2009
125 EXC Six Days 2010
125 EXC Six Days 2011
125 EXC Six Days 2012
125 SX 2004
125 SX 2005
125 SX 2006
125 SX 2007
125 SX 2008
125 SX 2009
125 SX 2010
125 SX 2011
125 SX 2012
125 SXS 2004
125 SXS 2006
125 SXS 2007
125 SXS 2008
144 SX 2007
144 SX 2008
150 SX 2009
150 SX 2010
150 SX 2011
150 SX 2012
150 XC 2010
150 XC 2011
150 XC 2012
200 EXC 2004
200 EXC 2005
200 EXC 2006
200 EXC 2007
200 EXC 2008
200 EXC 2009
200 EXC 2010
200 EXC 2011
200 EXC 2012
200 SX 2004
200 XC-W 2006
200 XC 2006
200 XC 2007
200 XC 2008
200 XC 2009
200 XC 2010
250 SX 2004
250 SX 2005
250 SX 2006
250 SX 2007
250 SX 2008
250 SX 2009
250 SX 2010
250 SX 2011
250 SX 2012
250 SXS 2004
250 SXS 2006
250 SXS 2007
250 SXS 2008
250 SXS 2009
250 XC 2006
250 XC 2007
250 XC 2008
250 XC 2009
250 XC 2010
250 XC 2011
250 XC 2012
300 MXC 2004
300 MXC 2005
300 XC 2006
300 XC 2007
300 XC 2008
300 XC 2009
300 XC 2010
300 XC 2011
300 XC 2012
Año modelo
2004
2005
2006
2007
2008
2009
2010
2011
2012
New

Los productos disponibles se enviarán siempre que haya existencias. Aquellos que no estén disponibles de forma inmediata se solicitarán a nuestro proveedor oficial cada día laborable, momento en el que se calcularán los tiempos estimados de recepción, salvo durante el 24 de diciembre al 2 de enero, periodo en el que los pedidos se gestionarán a partir del 2 de enero debido a las vacaciones.

Los envíos se realizan mediante transportista, con un plazo aproximado de 48 a 72 horas laborables para entregas nacionales. Los envíos internacionales pueden tardar entre 5 y 10 días laborables, salvo en periodos de parón por mantenimiento, vacaciones o alta demanda, como durante el Black Friday.

La entrega de motos se coordina directamente con el comercial durante la compra.

AMORTIGUADOR DIRECTION KTM SCOTTS

599.07
509.21 Save 15%
58512050100

Did you ever get the handlebar out of your hand? This high end address damper provides maximum control on fast paths and significantly higher safety!
Other advantages:
- Extremely low weight
- Sensitive response
- Setting high speed
- Ideal adjustment range with 25 possible skids
The factory equipment KTM Rallye employs it successfully. Suitable for all SX and EXC models.
In order to use in Enduro from model 2021 (EU version), the respirator hose of the TA petrol tank is additionally needed

The pin screw of the direction 54801036000 must be mounted additionally. Sold separately

SOPORTE FOR EXC TIJA REF 58512050144Sold separately

Stop:

  • 125 EXC 2003 2016
  • 125 SX 2003 2022
  • 125 SXS 2003 2008
  • 125 XC 2021 2022
  • 125 XC-W 2017 2019
  • 150 EXC 2020 2023
  • 150 SX 2009 2022
  • 150 XC 2010 2015
  • 150 XC-W 2017 2023
  • 200 EXC 2003
  • 200 EXC 2003
  • 200 EXC 2003
  • 200 EXC 2003
  • 200 EXC 2004
  • 200 EXC 2004
  • 200 EXC 2004
  • 200 EXC 2004 2016
  • 200 SX 2003 2010
  • 200 XC-W 2006 2016
  • 250 EXC 2003 2023
  • 250 EXC-F 2010 2023
  • 250 SX 2003 2022
  • 250 SX-F 2005 2022
  • 250 SXS 2003 2009
  • 250 SXS-F 2007 2010
  • 250 SXS-F 2008
  • 250 XC 2006 2022
  • 250 XC-F 2007 2022
  • 250 XC-W 2006 2023
  • 250 XCF-W 2006 2016
  • 300 EXC 2003 2023
  • 300 XC 2011 2022
  • 300 XC-W 2006 2023
  • 300 XC-W 2006 2023
  • 350 EXC-F 2012 2023
  • 350 SX-F 2011
  • 350 XCF-W 2012 2016
  • 400 EXC 2003 2011
  • 400 XC-W 2007 2010
  • 450 EXC 2003 2023
  • 450 FSR 2004 2023
  • 450 SX 2003 2022
  • 450 SXS 2003 2008
  • 450 XC 2004 2023
  • 500 EXC 2012 2023
  • 500 XC-W 2012 2022
  • 505 SX-F 2008 2010
  • 525 EXC 2003 2007
  • 525 MXC 2003 2005
  • 525 SMR 2004 2005
  • 525 SX 2003 2006
  • 525 XC 2006 2007
  • 530 EXC 2008 2011
  • 540 SXS 2003 2006
  • 560 FSR 2006 2007
  • 625 SXC 2003 2007
  • 790 Adventure from 2019
  • 890 Adventure from 2021
  • 890 SMT since 2023 2023
  • FREERIDE 250 F 2018 2020
  • Freeride 250 R 2014 2017
  • Freeride 350 2012 2017
  • Freeride E-SX 2015 2017
  • Freeride E-XC 2015 2015
  • Freeride E-XC 2016 2023
  • dorado
    dorado
Quantity

27/2/26
