This luggage rack is the mounting base for fitting KTM PowerParts travel bags or top cases, designed for riders who want to give their bike extra load capacity without losing access to the standard compartments. It is fitted to the rear of the subframe, in the usual passenger seat area.
It is made from a combination of aluminium and steel, giving it the rigidity needed to support the weight of the luggage without adding excessive weight to the overall setup. It features Quicklock systems, which keep quick, direct access to the storage compartment under the passenger seat even with the rack fitted.

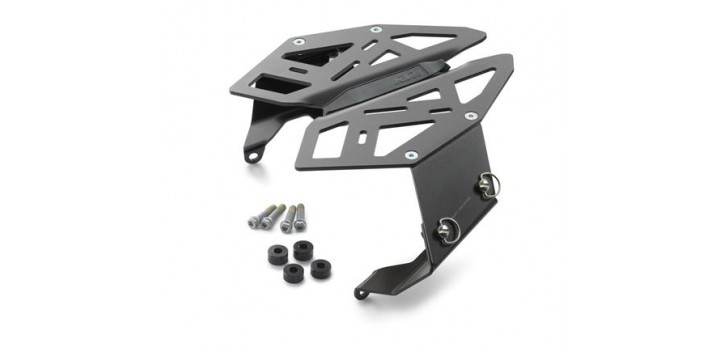

The photo shows a structure of metal bars in black, with a uniform finish and an open design that reveals the anchor points to the chassis and rear fender.
In daily use, it acts as the starting point for attaching a top case or travel bags from the KTM PowerParts range, without blocking access to the storage compartment under the seat thanks to the Quicklock fasteners.
93012927044
Data sheet
Color
negro
APPROVALS
HOMNN_EU
MATERIAL
Aluminio / Acero
Nombre modelo
125 Duke
200 Duke
200 Duke NG
250 Duke
390 Duke
390 Duke R2R
Año modelo
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
Compatibilidad
125 Duke 2017
125 Duke 2018
125 Duke 2019
125 Duke 2020
125 Duke 2021
125 Duke 2022
125 Duke 2023
200 Duke 2020
200 Duke 2021
200 Duke 2022
200 Duke 2023
200 Duke 2024
200 Duke 2025
200 Duke 2026
200 Duke NG 2022
250 Duke 2017
250 Duke 2018
250 Duke 2019
250 Duke 2020
250 Duke 2021
250 Duke 2022
250 Duke 2023
250 Duke 2024
390 DUKE 2017
390 Duke 2018
390 Duke 2019
390 Duke 2020
390 Duke 2021
390 Duke 2022
390 Duke 2023
390 Duke R2R 2022
Los productos disponibles se enviarán siempre que haya existencias. Aquellos que no estén disponibles de forma inmediata se solicitarán a nuestro proveedor oficial cada día laborable, momento en el que se calcularán los tiempos estimados de recepción, salvo durante el 24 de diciembre al 2 de enero, periodo en el que los pedidos se gestionarán a partir del 2 de enero debido a las vacaciones.
Los envíos se realizan mediante transportista, con un plazo aproximado de 48 a 72 horas laborables para entregas nacionales. Los envíos internacionales pueden tardar entre 5 y 10 días laborables, salvo en periodos de parón por mantenimiento, vacaciones o alta demanda, como durante el Black Friday.
La entrega de motos se coordina directamente con el comercial durante la compra.
PORTAEQUIPAJES KTM DUKE 125 / 250 /390
199.05
169.19
Save 15%
93012927044
This bearing plate is the basis for mounting our rear bag 60012978000 or our topcase of 48 l 6201292700004/28/30. Quick Lock systems allow quick and easy access to the glove compartment below the passenger seat.
